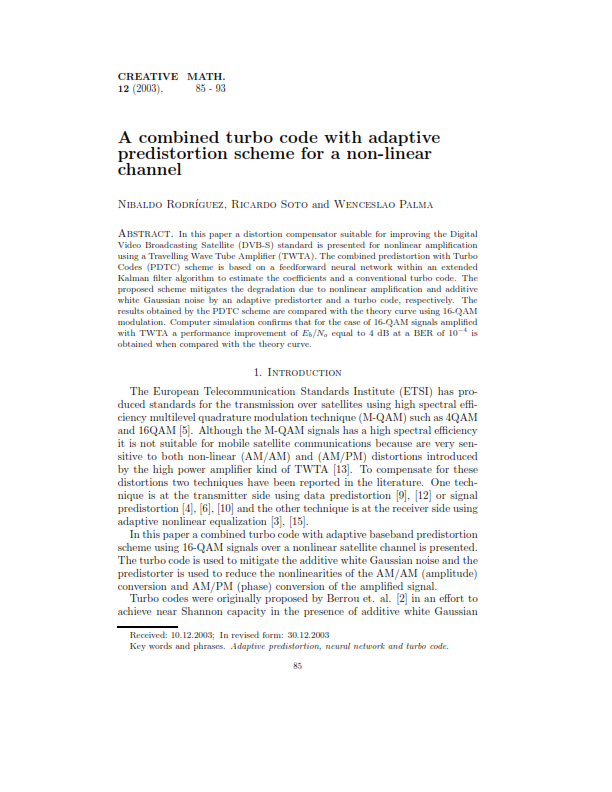

A combined turbo code with adaptive predistortion scheme for a non-linear channel


N. RodriguezR. SotoW. Palma


Abstract

creative_2003_12_085_093_abstract

Full PDF

creative_2003_12_085_093

In this paper a distortion compensator suitable for improving the Digital Video Broadcasting Satellite (DVB-S) standard is presented for nonlinear amplification using a Travelling Wave Tube Amplifier (TWTA). The combined predistortion with Turbo Codes (PDTC) scheme is based on a feedforward neural network within an extended Kalman filter algorithm to estimate the coefficients and a conventional turbo code. The proposed scheme mitigates the degradation due to nonlinear amplification and additive white Gaussian noise by an adaptive predistorter and a turbo code, respectively. The results obtained by the PDTC scheme are compared with the theory curve using 16-QAM modulation. Computer simulation confirms that for the case of 16-QAM signals amplified with TWTA a performance improvement of Eb/No equal to 4 dB at a BER of 10−4 is obtained when compared with the theory curve.

Additional Information

Author(s)

Palma, W., Rodriguez, N., Soto, R.
